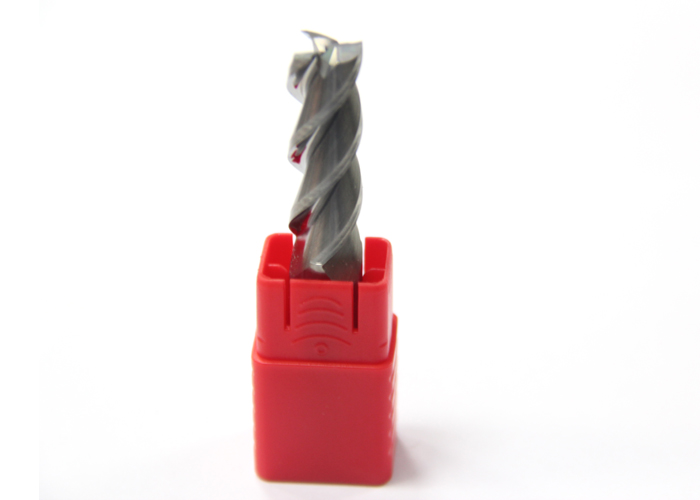

3 Blade Aluminum End Mills / 1 Inch 2 Inch Diameter End Mill Cutters
Specifications:
A380 high gloss aluminum milling cutter series adopt domestic high-quality fine grain tungsten steel material, flexural strength: 4100mpa, grain size: 0.8 μm, not easy to break the edge. A new special aluminum milling cutter with color coating is introduced, which increases the wear resistance of the cutter. The unique groove design and the polishing treatment of the front cutting edge and groove are adopted to increase the cutting performance. It is especially suitable for efficient and high gloss machining of aluminum alloy (6 and 7 series aluminum) materials. With high precision quality control, and full inspection, all A380 series end mills are delivered with 100% qualification rate.
| Raw Material | K30 / YL10.2 |
| TRS | >4100N/mm2 |
| Hardness | >91HRA |
| A.O.L | 50mm-150mm |
| Grain size | 0.8 μm |
| Upto | HRC50 |
| Flutes No | 3F |
| Suitable for | Aluminum,plastic and other materials |
Standard Sizes
| Size | Flute Length of End Mills(mm) |
| Aluminum Use |
| D1*D4*50 | 3 |
| D1.5*D4*50 | 5 |
| D2*D4*50 | 6 |
| D2.5*D4*50 | 8 |
| D3*D4*50 | 9 |
| D3*D3*50 | 9 |
| D3.5*D4*50 | 11 |
| D4*D4*50 | 12 |
| D1*D6*50 | 3 |
| D1.5*D6*50 | 5 |
| D2*D6*50 | 6 |
| D2.5*D6*50 | 8 |
| D3*D6*50 | 9 |
| D3.5*D6*50 | 11 |
| D4*D6*50 | 12 |
| D6*D6*50 | 15 |
| D6*D6*50 | 18 |
| D7*D8*60 | 20 |
| D8*D8*60 | 24 |
| D10*75 | 30 |
| D12*75 | 35 |
| D14*100 | 45 |
| D16*100 | 45 |
| D18*100 | 45 |
| D20*100 | 45 |
| Flute Length of Extended End Mills(mm) |
| D3*D4*75 | 12 |
| D4*D4*75 | 16 |
| D5*D6*75 | 18 |
| D6*D6*75 | 25 |
| D8*75 | 30 |
| D3*D4*100 | 15 |
| D4*D4*100 | 20 |
| D5*D6*100 | 30 |
| D6*D6*100 | 30 |
| D8*D8*100 | 35 |
| D10*100 | 40 |
| D12*100 | 45 |
| D6*D6*150 | 40 |
| D8*D8*150 | 50 |
| D10*150 | 55 |
| D12*150 | 55 |
| D14*150 | 60 |
| D16*150 | 70 |
| D18*150 | 70 |
| D20*150 | 70 |
HISTORY
XINPENG TOOLS is established from 2003, with near 20 years' experience in designing and manufacturing solid carbide end mill cutters and other cutting tools, like CNC insert,thread Mill Cutter, tungsten saw blade, we offer Customized Milling Tools also.
On 16th, June 2003, CHANGZHOU XINPENG TOOLS MANUFACTURING CO.,LTD was formally registered and established.
In October 2003, A professional R&D team was set up to develop new product projects, laying a solid foundation for future development.
In 2005 3 AXIS CNC grinders were imported from Taiwan.
In 2007, XINPENG TOOLS expanded the factory scale from 1000 square meters to 5000 square meters.
In 2009, Zoller Inspection machine was imported from Germany.
In 2011, Dongguan Branch was established to deal with after-sales problems for customers in South China.
In 2012, more high-precision CNC grinding machines and other world-class processing equipment were imported From Germany.
In 2013,tool measuring instruments, fine-tuning instruments,OD run out instruments and other tool detection equipment were imported.
In 2014, The production department continued to increase the number of machines, including grinders and DMG laser machines imported from Germany, and the production capacity of the products reached a new level.
In 2015, The company established the ministry of foreign trade, which is mainly responsible for the foreign market, to increase our company's competition in the same industry abroad.
In 2016, KTC branch was registered and established.
In 2017, We purchased German saacke five-axis CNC machines and haller CNC machines.
In 2019,We invited foreign experts to guide our work and provide theoretical learning for our engineers.
SERVICE
With strong strength, sufficient inventory, reasonable price and excellent service, our company has established a long-term cooperative relationship with many enterprises and peers.
