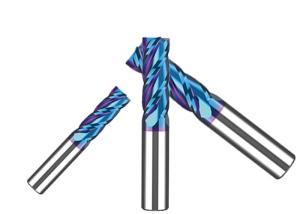

HRC55 ° flat end mill cutter High Performance Tungsten Carbide Milling Cutters Nano
Especially suitable for: P20 ,H13 ,S136,718H,NAK80,SKD61,S136, High speed processing of materials such as cast iron and stainless steel.
| Outer diameter D | Blade length H | Handle diameter d | Total length L |
| 1.0 | 3 | 4 | 50 |
| 1.5 | 5 | 4 | 50 |
| 2.0 | 6 | 4 | 50 |
| 2.5 | 8 | 4 | 50 |
| 3.0 | 9 | 4 | 50 |
| 4.0 | 10 | 4 | 50 |
| 5.0 | 13 | 5 | 50 |
| 5.0 | 15 | 6 | 50 |
| 6.0 | 15 | 6 | 50 |
| 8.0 | 20 | 8 | 60 |
| 10.0 | 25 | 10 | 75 |
| 12.0 | 30 | 12 | 75 |
| 14.0 | 45 | 14 | 100 |
| 16.0 | 45 | 16 | 100 |
| 18.0 | 45 | 18 | 100 |
| 20.0 | 45 | 20 | 100 |
| 4.0 | 14 | 4 | 75 |
| 5.0 | 20 | 5 | 75 |
| 5.0 | 20 | 6 | 75 |
| 6.0 | 24 | 6 | 75 |
| 8.0 | 30 | 8 | 75 |
| 4.0 | 20 | 4 | 100 |
| 5.0 | 25 | 5 | 100 |
| 5.0 | 25 | 6 | 100 |
| 6.0 | 30 | 6 | 100 |
| 8.0 | 35 | 8 | 100 |
| 10.0 | 40 | 10 | 100 |
| 12.0 | 45 | 12 | 100 |
| 6.0 | 45 | 6 | 150 |
| 8.0 | 50 | 8 | 150 |
| 10.0 | 60 | 10 | 150 |
| 12.0 | 60 | 12 | 150 |
| 14.0 | 70 | 14 | 150 |
| 16.0 | 75 | 16 | 150 |
| 18.0 | 75 | 18 | 150 |
| 20.0 | 75 | 20 | 150 |
Main features:
1. Using high-quality ultra-fine particle hard alloy matrix, the tool wear resistance and cutting edge strength are superior combined.
2. Apply high-performance nanocomposite coatings imported from Switzerland to give the cutting tools higher hardness and wear resistance.
3. Adopting a large helix angle design and strict quality control, it is suitable for high-speed machining stability and versatility.
FAQ
Q: Are you trading company or manufacturer ?
A: we are the manufacturer Specializing in High-End carbide cutting tools and non-standard cutting tools, OEM&ODM accept;
Q: How long is your delivery time?
A: Generally 1- 35 working days, it depends ;
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer our stock sample for free charge and you please pay the cost of freight.
custom cutting tools negotiated then we will quote the best sample cost.
If you have another question or need it, please feel free to contact us:
