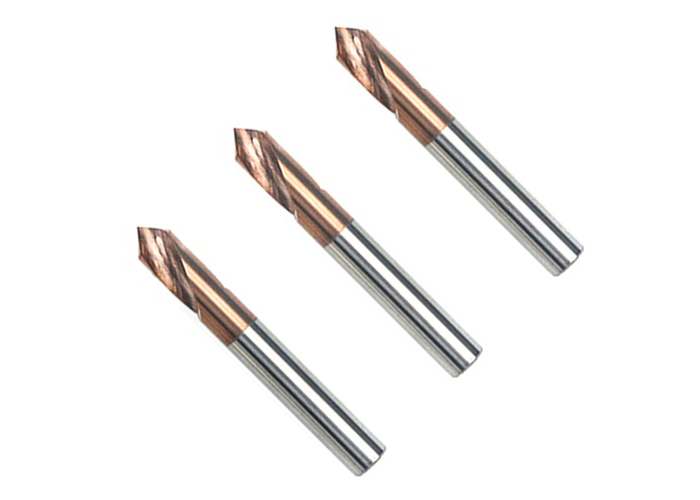

Cutting Tools Milling Cutter CNC Machinery Center Milling End Mill
Get durable carbide end mills to help precisely cut and shape a wide range of ferrous and nonferrous metals. Solid carbide end mills offer more versatility than regular drill bits because they can cut laterally and axially. Select from 2- and 4-flute square-nose carbide end mills in standard, stub length, extended cut and more. Find carbide end mills that can meet your demanding standards for face cutting, keyway production, finish cutting, cavity die work and more !
Specifications
| Raw Material | YL10.2 /K30 |
| WC | 90% |
| Co | 10% |
| TRS | >4100N/mm2 |
| Hardness | >92HRA |
| A.O.L | 50mm-100mm |
| Grain size | 0.8 μm |
| Upto | HRC55 |
| Flutes No | 2F |
| Coating | AlTiN or TiSiN |
| Suitable for | Steel,stainless steel,nickel alloy,Titanium alloy,cast iron,plastic and other materials |
Coating:
| Item | AlTiN | TiSiN |
| Hardness(HV): | 3200 | 3600 |
| Thickness(μm): | 2.5-3 | 3 |
| Oxidation Temp(°): | 900 | 1000 |
| frictional Coefficient: | 0.3 | 0.45 |
| Color: | Black | Copper |
Standard Sizes
| Size | Flute Length(mm) | the Degrees of Angle |
| D4*50 | 8 | 60° 90° 120° |
| D4*100 | 8 | 60° 90° 120° |
| D6*50 | 12 | 60° 90° 120° |
| D6*100 | 12 | 60° 90° 120° |
| D8*60 | 16 | 60° 90° 120° |
| D8*100 | 16 | 60° 90° 120° |
| D10*75 | 20 | 60° 90° 120° |
| D10*100 | 20 | 60° 90° 120° |
| D12*75 | 24 | 60° 90° 120° |
| D12*100 | 24 | 60° 90° 120° |
| D16*100 | 32 | 60° 90° 120° |
| D20*100 | 40 | 60° 90° 120° |
Details:
1. 100% virgin carbide material;
2. Precise dimension, high accuracy;
3. 100% inspection;
4. Special design for perfect cutting performance and efficiency;
5. Anti-broken design gives high wear-resistance without crack;
6. Super long tool life;
7. Customized tool design, coating, labeling, packing are available.
Main Products:
Our Main products include: Carbide Screwed Boring Bar, Plates, Rods, Sticks, Bushings, TP nozzles, 3D Printer Nozzles, Saw Blades, End Mills & Drill Bits, CNC inserts, Value Seats, Rotary Burrs, wheel cutters, Grits, Customized cutter: woodworking tool, V-cutter, textile cutter, shoes cutter ects. Any kinds of customized carbide products .
