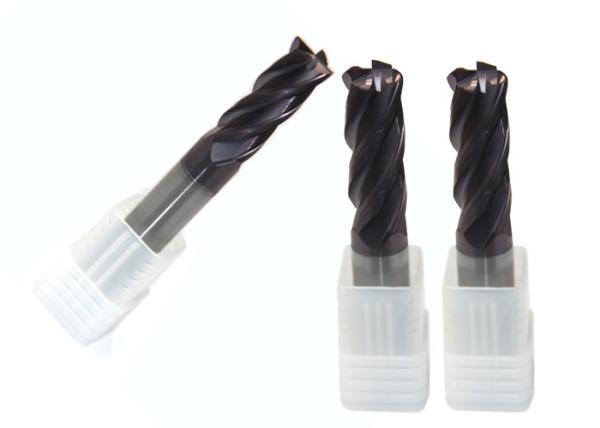

Aluminum Cutting Square End Mill / 4 Flutes 14mm 15mm 16mm End Mill Cutter
Specifications
We have QC in the production, every production process has inspection, every step has strict inspection and control, quality inspection staff accounted for 25% of the total number of the company.
To ensure the quality of goods, before packaging, all goods have been inspected. With high precision quality control and full inspection, all our end mill cutters are delivered with 100% qualification rate.
Flat (SQ) End Mills have a square end for milling square slots, pockets, grooving, side milling, face milling, and counter boring. All are center cutting, allowing plunge cuts into a surface. Great for milling into all types of material including, wood, plastic, metal.
E550MAX general processing milling cutter series adopt domestic high-quality fine grain tungsten steel material. Flexural strength: 4100mpa, grain size: 0.6 μm, with TiAlN-nano coating imported from Switzerland. The cutter is designed with special angle, especially suitable for carbon steel, alloy steel, pre-hardened steel and other materials processing.With high precision quality control, and full inspection, all E550MAX series end mills are delivered with 100% qualification rate.
| Raw Material |
WF25 / K40 |
| WC |
88% |
| Co |
12% |
| TRS |
>4100N/mm2 |
| Hardness |
>92HRA |
| A.O.L |
50mm-150mm |
| Grain size |
0.6 μm |
| Upto |
HRC58 |
| Flutes No |
4F |
| Coating |
TiAlN-nano |
| Suitable for |
Steel,stainless steel,nickel alloy,Titanium alloy,cast iron,plastic and other materials |
Coating:
| Item |
TiAlN-nano |
| Hardness(HV): |
2800 |
| Thickness(UM): |
2.5-3 |
| Oxidation Temp(°): |
800 |
| frictional Coefficient: |
0.3 |
| Color: |
Violet |
Standard Sizes
| Size |
Flute Length of End Mills(mm) |
| Flat end |
Ball Nose |
Round nose |
| D1*D4*50 |
3 |
2 |
3 |
| D1.5*D4*50 |
4 |
3 |
4 |
| D2*D4*50 |
5 |
4 |
5 |
| D2.5*D4*50 |
6 |
5 |
6 |
| D3*D4*50 |
8 |
6 |
8 |
| D3*D3*50 |
8 |
6 |
8 |
| D3.5*D4*50 |
9 |
7 |
9 |
| D4*D4*50 |
10 |
8 |
10 |
| D1*D6*50 |
3 |
2 |
3 |
| D1.5*D6*50 |
4 |
3 |
4 |
| D2*D6*50 |
5 |
4 |
5 |
| D2.5*D6*50 |
6 |
5 |
6 |
| D3*D6*50 |
8 |
6 |
8 |
| D3.5*D6*50 |
9 |
7 |
9 |
| D4*D6*50 |
10 |
8 |
10 |
| D6*D6*50 |
13 |
10 |
13 |
| D6*D6*50 |
15 |
12 |
15 |
| D7*D8*60 |
17 |
14 |
17 |
| D8*D8*60 |
20 |
16 |
20 |
| D10*75 |
25 |
20 |
25 |
| D12*75 |
30 |
24 |
30 |
| D14*100 |
45 |
28 |
35 |
| D16*100 |
45 |
32 |
40 |
| D18*100 |
45 |
36 |
40 |
| D20*100 |
45 |
40 |
40 |
|
Flute Length of Extended End Mills(mm)
|
| D3*D4*75 |
12 |
6 |
12 |
| D4*D4*75 |
16 |
8 |
14 |
| D5*D6*75 |
18 |
10 |
15 |
| D6*D6*75 |
24 |
12 |
20 |
| D8*75 |
25 |
16 |
25 |
| D3*D4*100 |
12 |
6 |
15 |
| D4*D4*100 |
20 |
8 |
15 |
| D5*D6*100 |
20 |
10 |
20 |
| D6*D6*100 |
30 |
12 |
25 |
| D8*D8*100 |
35 |
16 |
30 |
| D10*100 |
40 |
20 |
30 |
| D12*100 |
45 |
24 |
35 |
| D6*D6*150 |
45 |
12 |
40 |
| D8*D8*150 |
50 |
16 |
45 |
| D10*150 |
55 |
20 |
50 |
| D12*150 |
55 |
24 |
55 |
| D14*150 |
60 |
28 |
60 |
| D16*150 |
70 |
32 |
65 |
| D18*150 |
70 |
36 |
70 |
| D20*150 |
70 |
40 |
70 |
The process of production:
1. Order entry business arrangements, then prepared the raw material, sent to engineer to drawing.
2. The grinding to flat head and chamfering, or taper of the angle.
3. Inspector test the diameter, length, taper angle and tolerance of the material, then lasering.
4. Go to CNC machine working. Some time check the cutter when it producing.
5. Inspector test all of when the cutters finished.
6. If the cutters no need to coating, then we will package it sent to customer. If the cutters need to coating, we package it sent to coating.
- After coating back, inspector will check it. Then sent to customer.
