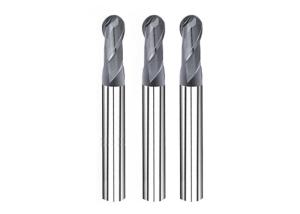

Tungsten Carbide Ball Nose Tool High Speed High Hardness Long Service Life

Model Number : HG680

Place of Origin : MADE IN CHINA

Brand Name : KTC

Certification : CCC

MOQ : 10 pcs

Price : Negotiation

Packaging Details : 1PC/ PVC Packing, 10pcs PVC Packing/Pack...

Delivery Time : 1-35days

Payment Terms : T/T, L/C,Paypal...

Supply Ability : 10000pcs/week

Product Name : End Mills

Precision : High precision

Flexural Strength : 4600mpa

A.O.L : 50mm-150mm

Grain size : 0.2 μm

Flutes No : 4 Flutes

Contact Now

Tungsten Carbide Ball Nose Tool High Speed High Hardness Long Service Life

Specifications

Ball nose cutters or ball end mills are similar to slot drills, but the end of the cutters is hemispherical. They are ideal for machining 3-dimensional contoured shapes in machining centres, for example in dies and moulds.

Roughing and finishing end mills are used in a variety of milling applications. They remove heavy material while providing a smooth finish in a single pass. Corner rounding end mills are used for milling rounded edges. They have ground cutting tips that strengthen the end of the tool and reduce edge chipping.

HG680 high speed and high hardness milling cutter series is made of high-quality European grain tungsten steel material, with bending strength of 4600mpa and grain size of 0.2 μm, which is coated with imported Balzers high-performance composite coating. HG680 milling cutters are with special groove design, are especially suitable for high hard material processing. The service life of cutting tools can meet the requirements of great brands. With high precision quality control, and full inspection, all HG680 series end mills are delivered with 100% qualification rate.

Raw Material	K44
WC	88%
Co	12%
TRS	>4600N/mm2
Hardness	>94HRA
A.O.L	50mm-150mm
Grain size	0.2μm
Upto	<HRC65
Flutes No	4F
Coating	Balzers
Suitable for	Steel,stainless steel,nickel alloy,Titanuim alloy,cast iron,plastic and other materials

Tungsten Carbide Ball Nose Tool High Speed High Hardness Long Service Life
Standard Sizes

Size	Flute Length of End Mills(mm)
Size	Flat end	Ball Nose
D1D450	3	2
D1.5D450	4	3
D2D450	5	4
D2.5D450	6	5
D3D450	8	6
D3D350	8	6
D3.5D450	9	7
D4D450	10	8
D1D650	3	2
D1.5D650	4	3
D2D650	5	4
D2.5D650	6	5
D3D650	8	6
D3.5D650	9	7
D4D650	10	8
D6D650	13	10
D6D650	15	12
D7D860	17	14
D8D860	20	16
D10*75	25	20
D12*75	30	24
D14*100	45	28
D16*100	45	32
D18*100	45	36
D20*100	45	40
Flute Length of Extended End Mills(mm)
D3D475	12	6
D4D475	16	8
D5D675	18	10
D6D675	25	12
D8*75	30	16
D3D4100	15	6
D4D4100	20	8
D5D6100	30	10
D6D6100	30	12
D8D8100	35	16
D10*100	40	20
D12*100	45	24
D6D6150	40	12
D8D8150	50	16
D10*150	55	20
D12*150	55	24
D14*150	60	28
D16*150	70	32
D18*150	70	70
D20*150	70	70
